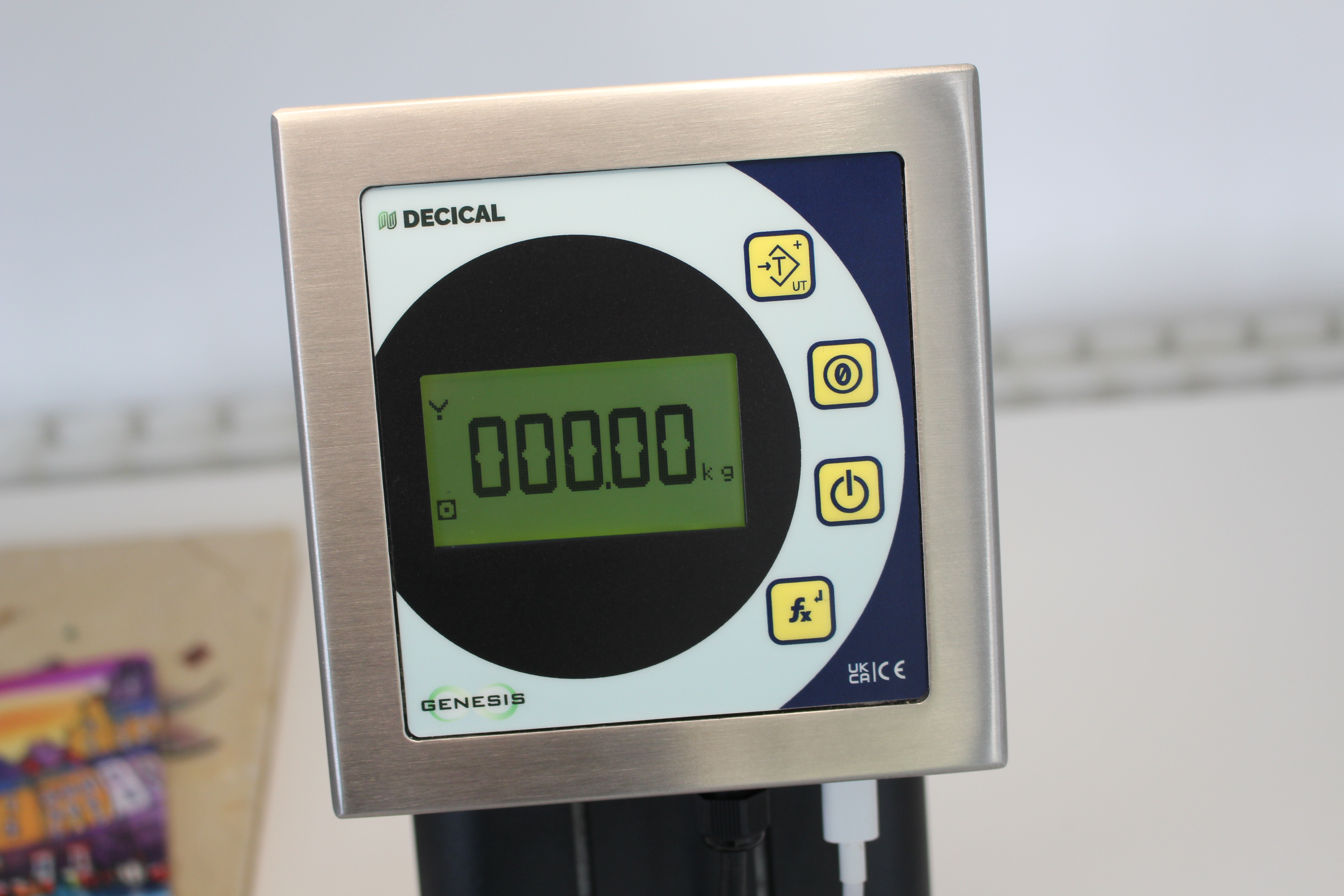

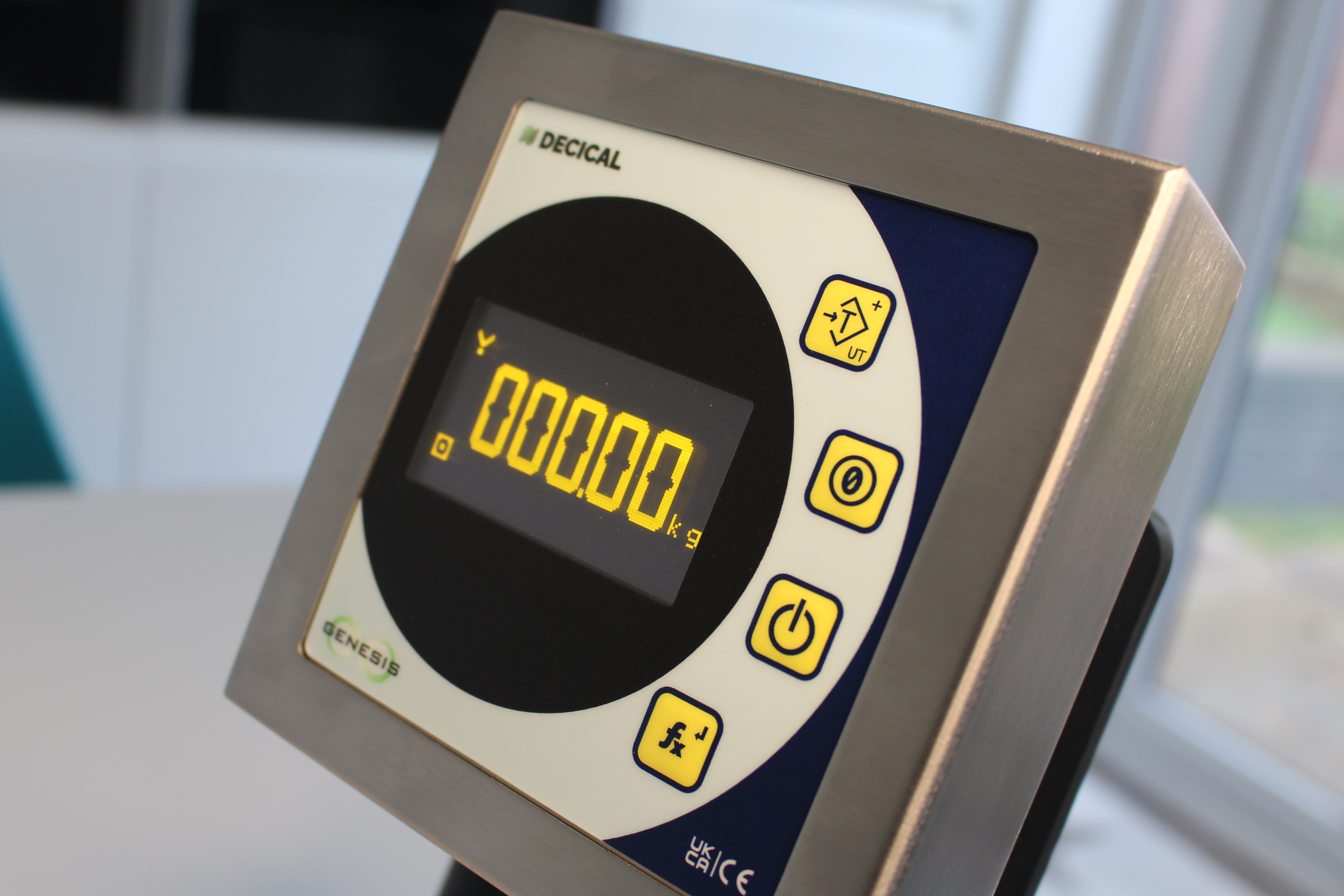

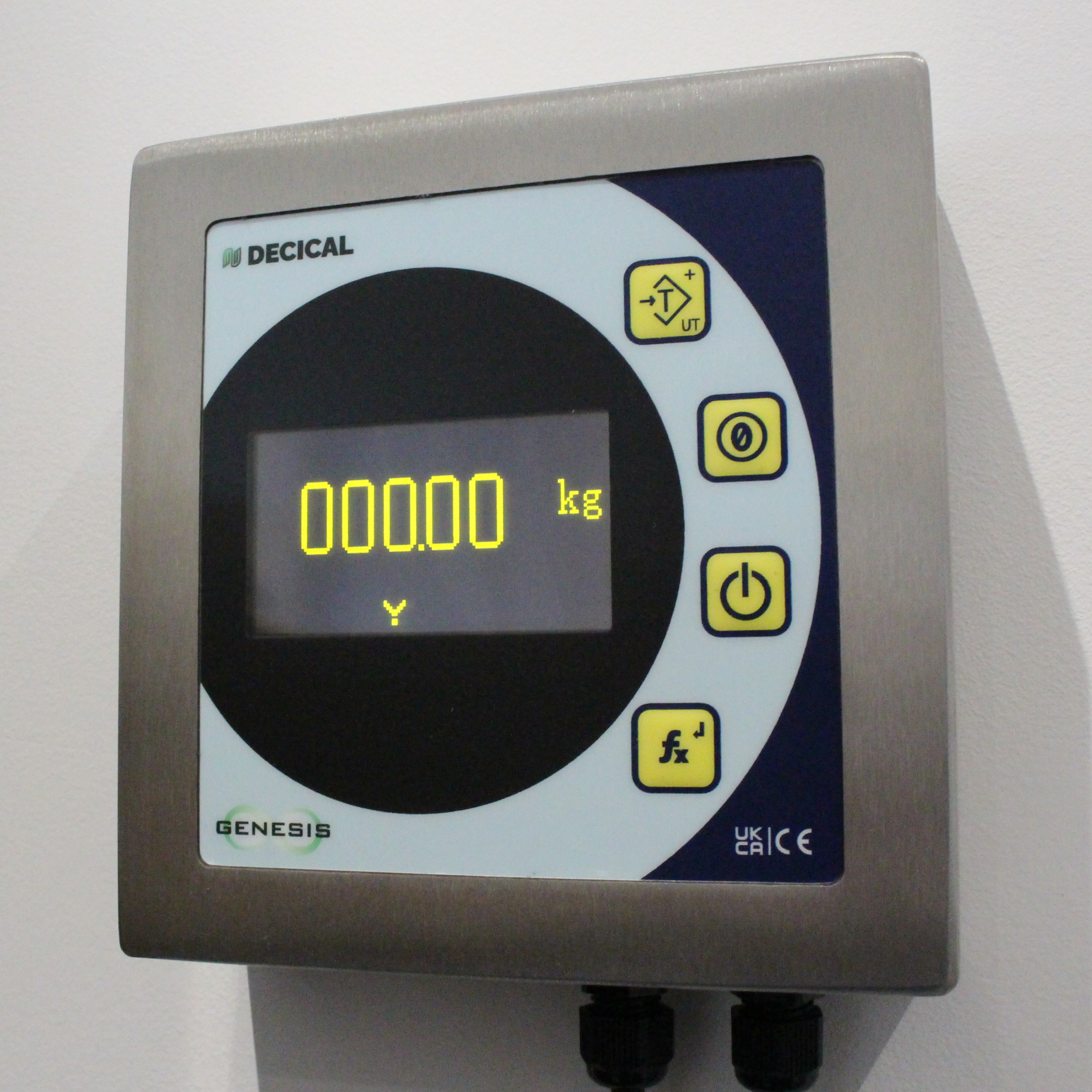

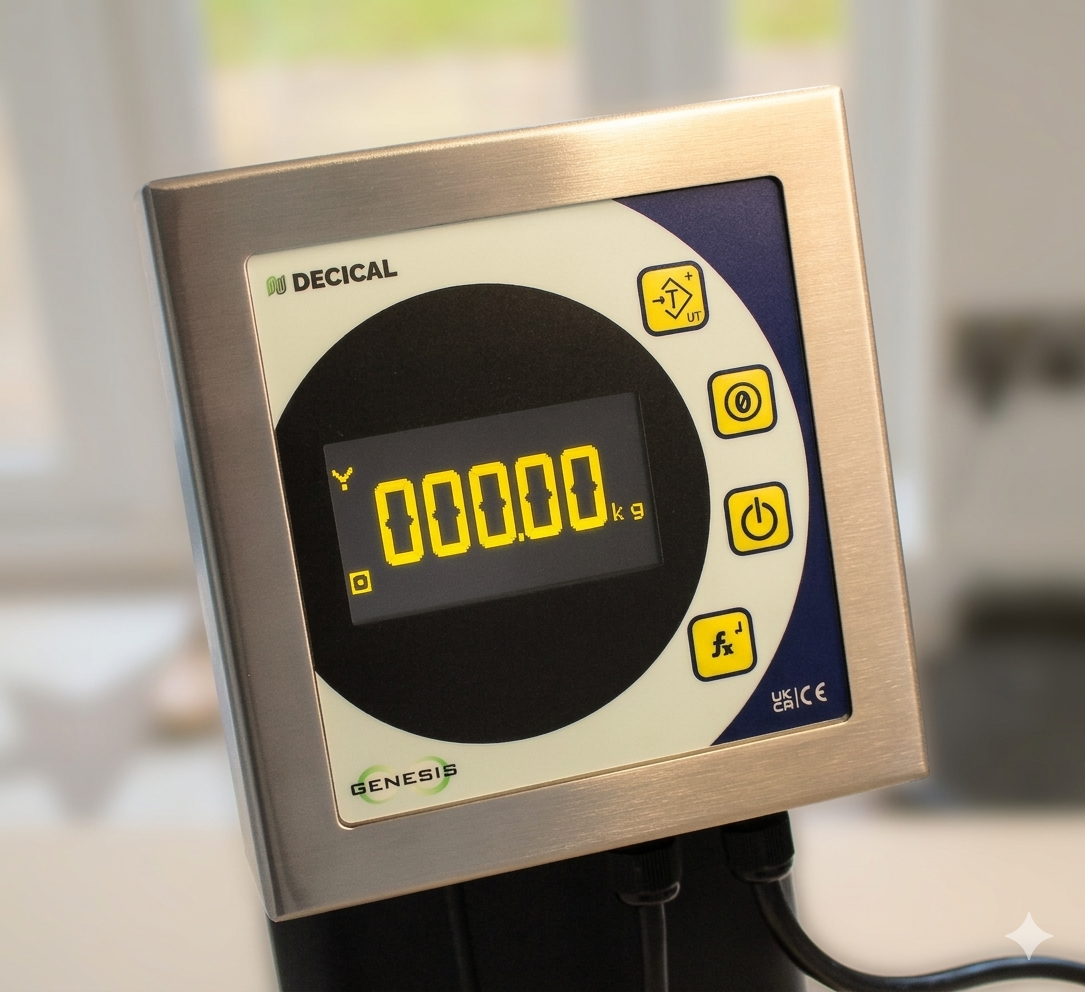

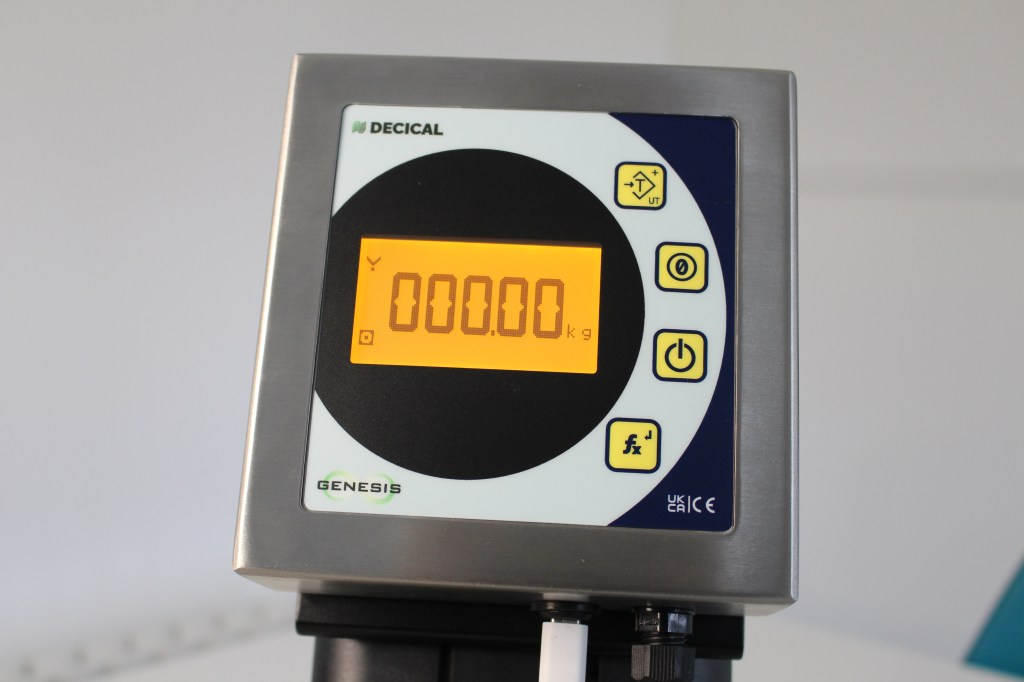

GENESIS WEIGH INDICATION

The first new product designed and developed by Decical Electronics is a compact, self enclosed environmentally protected weigh terminal featuring performance, functionality, reliability and adaptability.

High performance, accuracy and feature rich at a low cost.

The indicator is housed in a robust 140 x 140 x 50mm high grade stainless steel, environmentally sealed IP54 splashproof enclosure fitted with a food grade silicone gasket that’s easy to mount using the included wall attachments or by purchasing a compatible VESA mount. (IP65 rating optional extra)

The Genesis is capable of high-resolution conversion thanks to its ultra-low power, low drift 24bit analogue to digital conversion, featuring engineer selectable, onboard linearity, shutdown timeouts and filter settings to suit every environment.

Software includes Tare/Tare recall, full range zero, peak hold, unit change and semi or fully automated pickup and store modes. Special programming applications are welcome.

The USB rechargeable design has an emphasis on battery survival and low power, the LCD, non-backlit version can operate for 72 hours constant use (single loadcell cell), if used in conjunction with the shutdown facility the GENESIS could provide use up to and over a week without re-charging.

Optional add-on options include 16 bit 4-20mA output, solid state relay interfaces for process control, licence free 868/915Mhz radio, USB and RS232C communications.

Available in different power options: USB adaptor, USB rechargeable with integral battery cell, 100 – 240VAC SMPS mains and 9-32v DC.

Unrivalled UK support, repair, spare-parts and stock. Over 30 years in the industry.

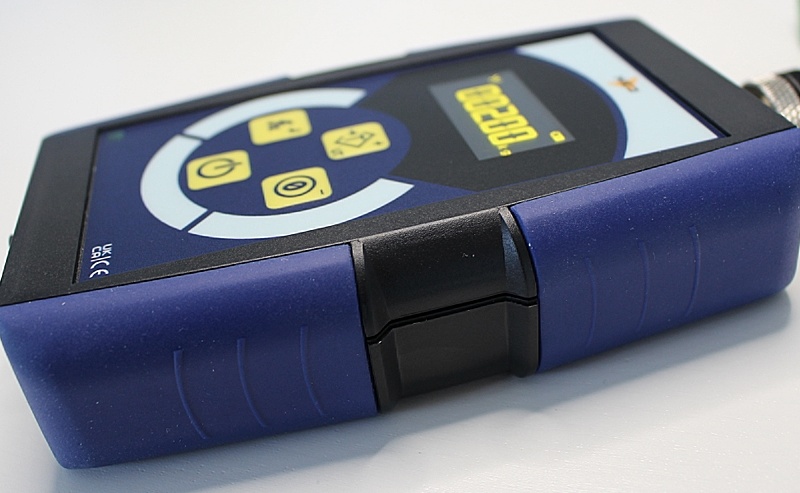

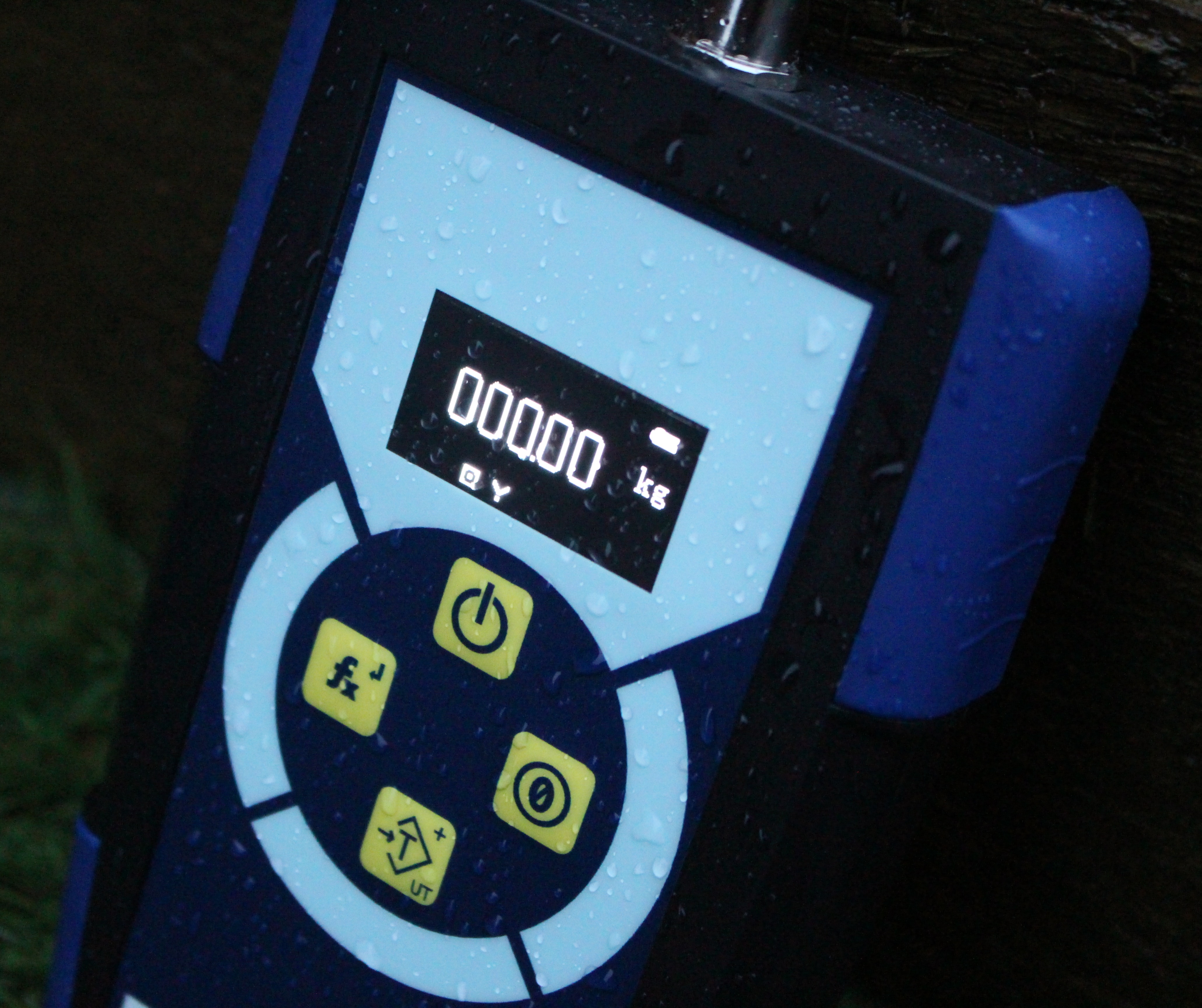

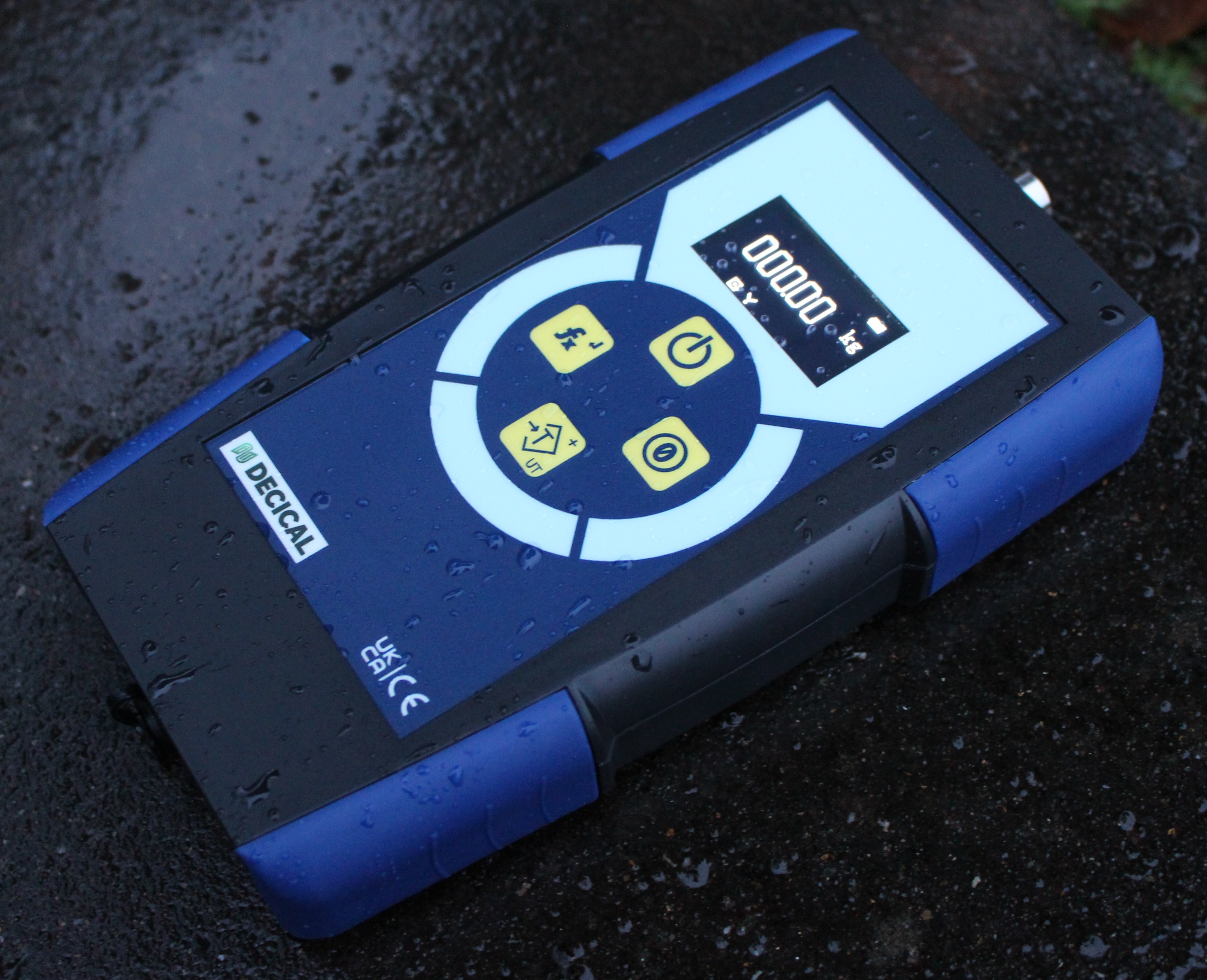

W-6 / R-6 “BEAT” WEIGH INDICATION

Proudly designed and manufactured in rural Shropshire, the Model 6 profiles performance, accuracy and versatility

Robust hand held design to meet the toughest of terrains!

The indicator is housed in a robust 185 x 110 x 35mm environmentally sealed IP65 enclosure

The Model-6 is capable of high-resolution conversion thanks to its ultra-low power, low drift 24bit analogue to digital conversion, featuring engineer selectable, onboard linearity, shutdown timeouts and filter settings to suit every environment.

Software includes Tare/Tare recall, full range zero, peak hold, unit change and semi or fully automated pickup and store modes. Special programming applications are welcome.

The USB rechargeable design has an emphasis on battery survival and low power, featuring a high resolution OLED display the BEAT can operate for up to 60 hours constant use (single loadcell cell), if used in conjunction with the shutdown facility the BEAT could provide use up to and over a week without re-charging.

The Model – 6 is available as a wired or licence free wireless device within the universal 868/915Mhz bands, featuring a fully configurable interface that allows different options to suit the terrain. With a reach of up to 1km with high-speed update, unlimited devices and paired with its COMLink companion (ultra-miniature transmitter coming soon…) the R6 will provide robust performance and flexibility.

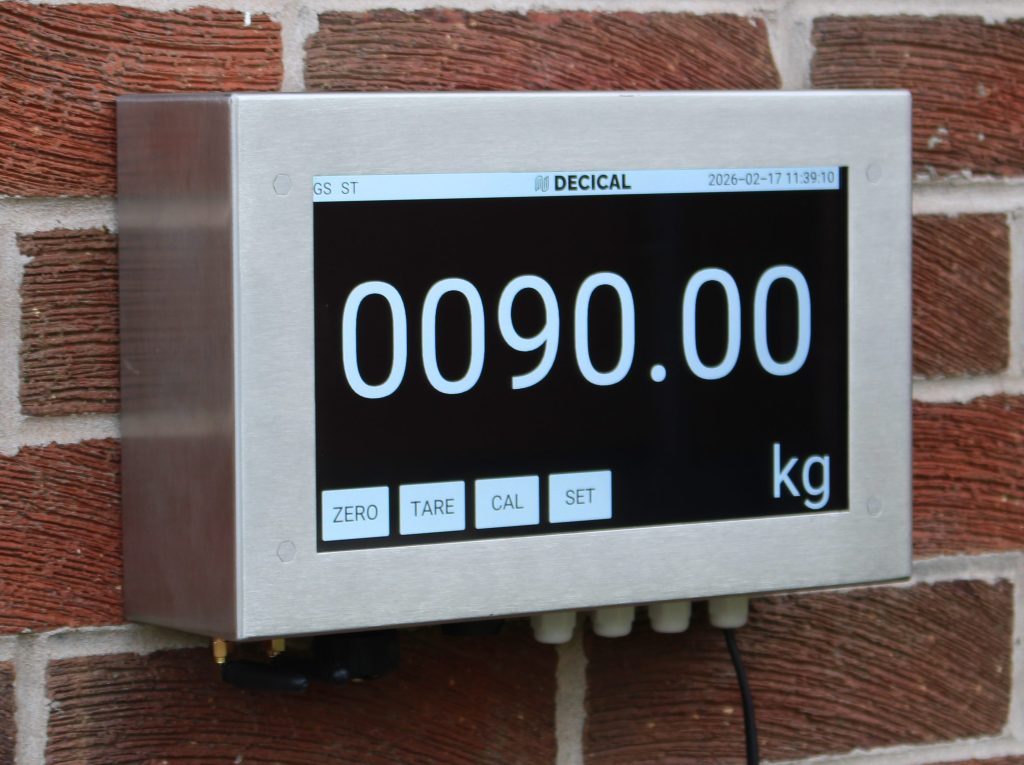

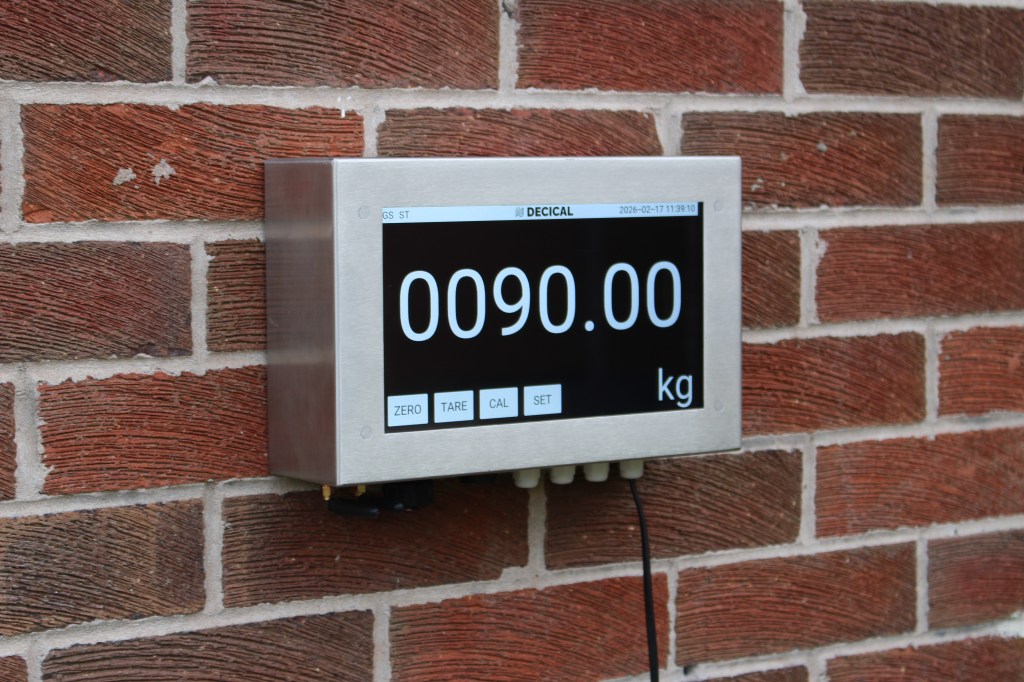

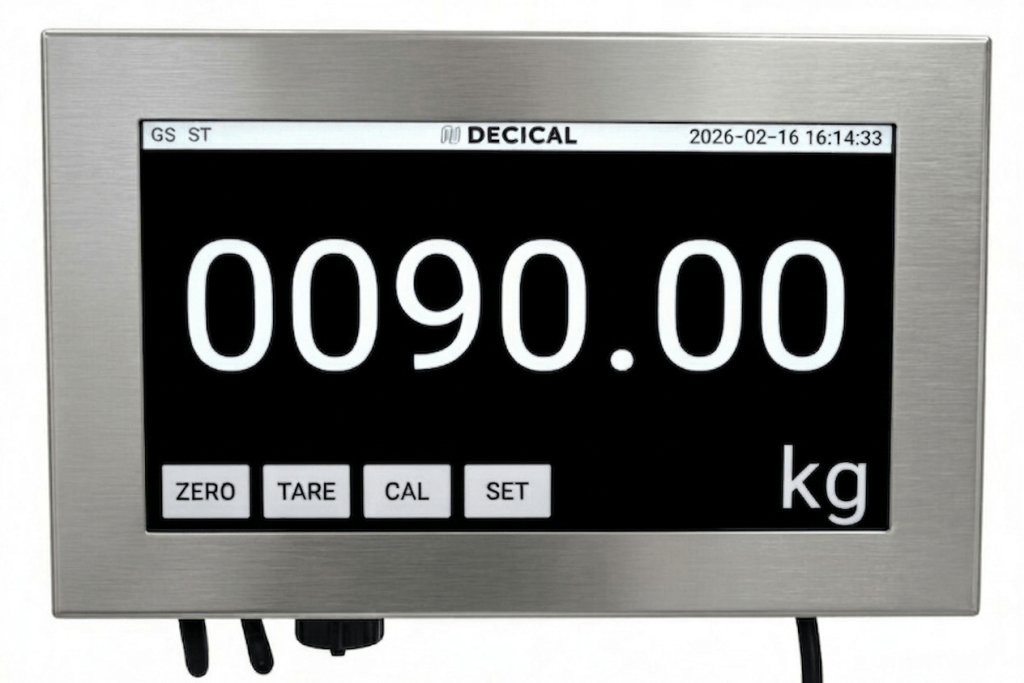

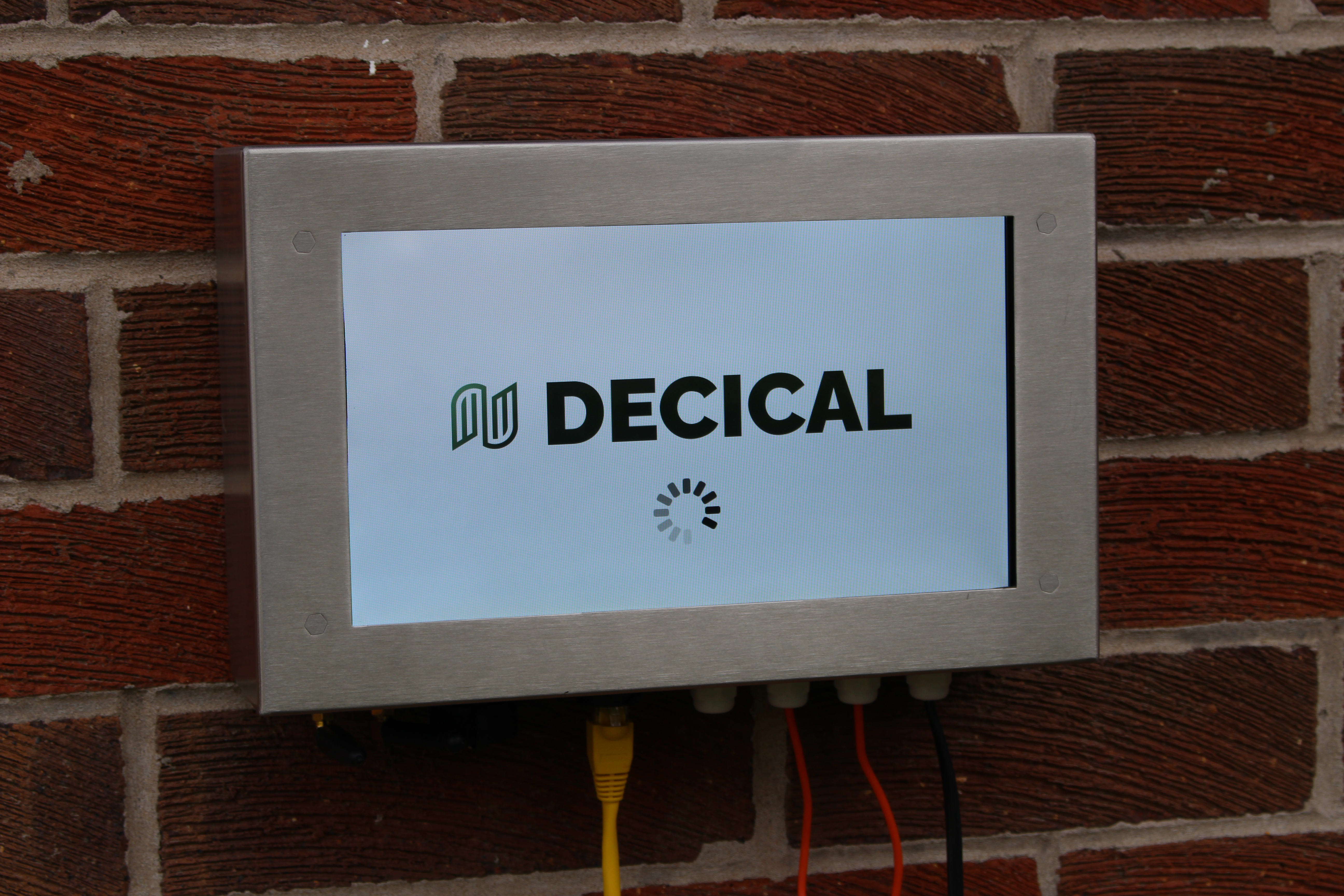

The NEXUS system comprises a 10.1” high brightness capacitive touch screen, a 580MHz Linux network application processor and up to four high precision, low noise load cell interfaces housed in a high grade sealed stainless steel enclosure (29cm x 18cm x 8cm)

Application Processor

The application processor is based around MIPS architecture running a custom version of the Linux operating system, built by us, from the ground up for security, stability and performance. The base operating system used is deployed around the world in many devices and trusted in appliances such as network routers and firewalls and forms an extremely secure, stable and flexible application environment.

The processor has built-in Wi-Fi, Ethernet and USB interfaces as well as an external serial port. The Wi-Fi access point and Ethernet interfaces allow customers to access the internal web interface to interact with the system. These also allow us to remotely access the system for support and software updates. The USB interface and serial port can be used to add additional peripherals and optionally transfer data to and from the device.

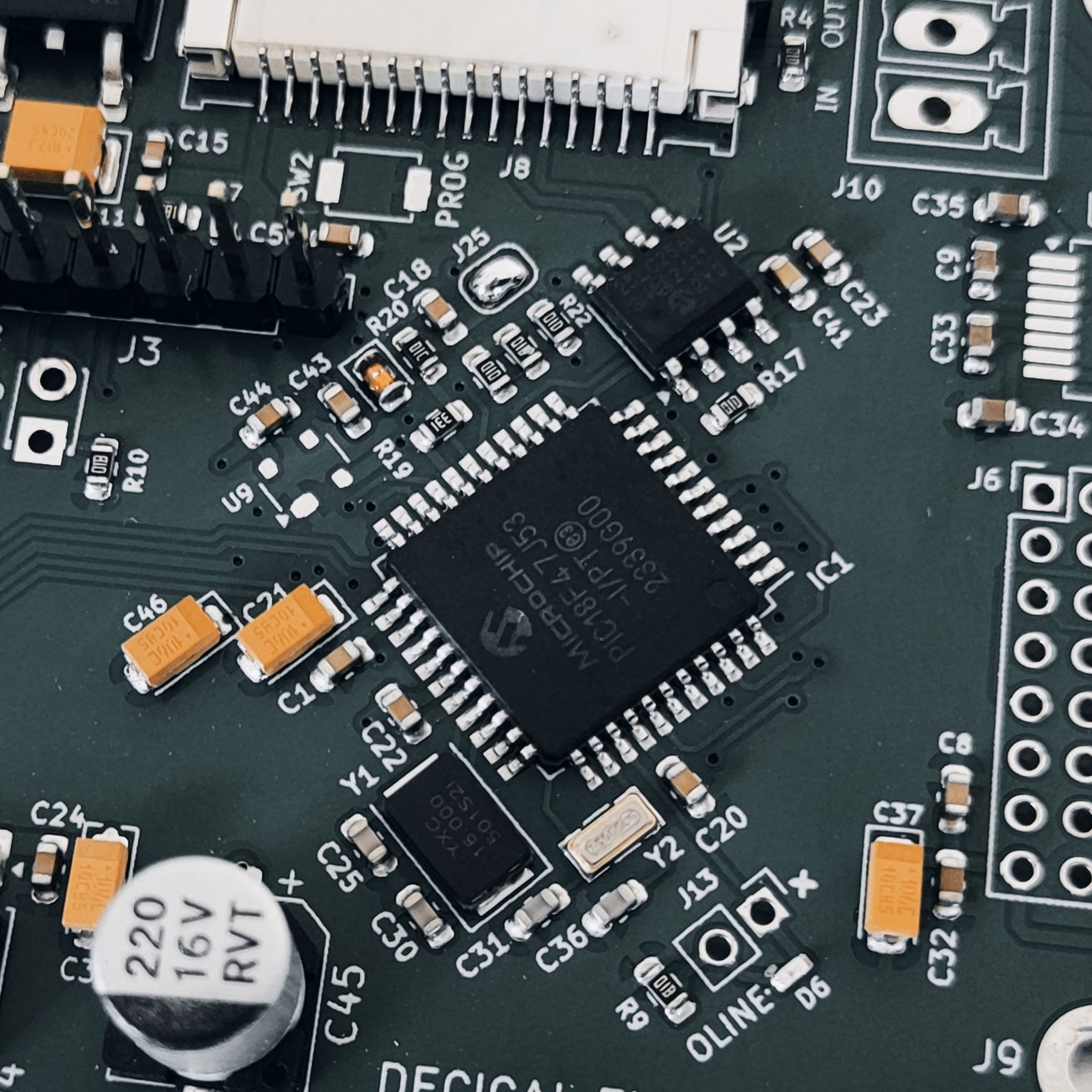

The main processor board also has a sub-GHz license free ISM band radio transceiver which can be used to exchange data with a range of compatible devices or used for synchronization purposes.

The system can run any software designed by us, its primary purpose is to read the load cells and process the data in several ways, the application is tailored to suit the customer requirements. We work with the customer to provide the solution required. All the software and hardware design is done in the UK, and we provide long-term support and offer configuration and support services.

Remote Access

An operator can interact with the system via the built-in Wi-Fi access point or the touch screen. For a fully installed system, the Ethernet interface can be used to connect with a customer network and then the Internet.

Once Internet connectivity is established the system can connect to our back-end server infrastructure, this provides the ability to send emails (for reports, alarms and run data), allows a customer to remotely access the web interface, allows us to provide ongoing remote support and software updates, provides a channel for data backup and off-device analysis applications.

For systems in the field, we can provide mobile network data connectivity solutions.

External Devices

NEXUS has scope for communicating with external equipment using serial port (RS485/232), network protocols, driving devices such as beacons, klaxons and controlling other switchgear via relays.

The flexibility of NEXUS allows the weighing termination to be configurable to your unique application, making the connection between the operator, process control and information exchange using integral storage or network protocols.

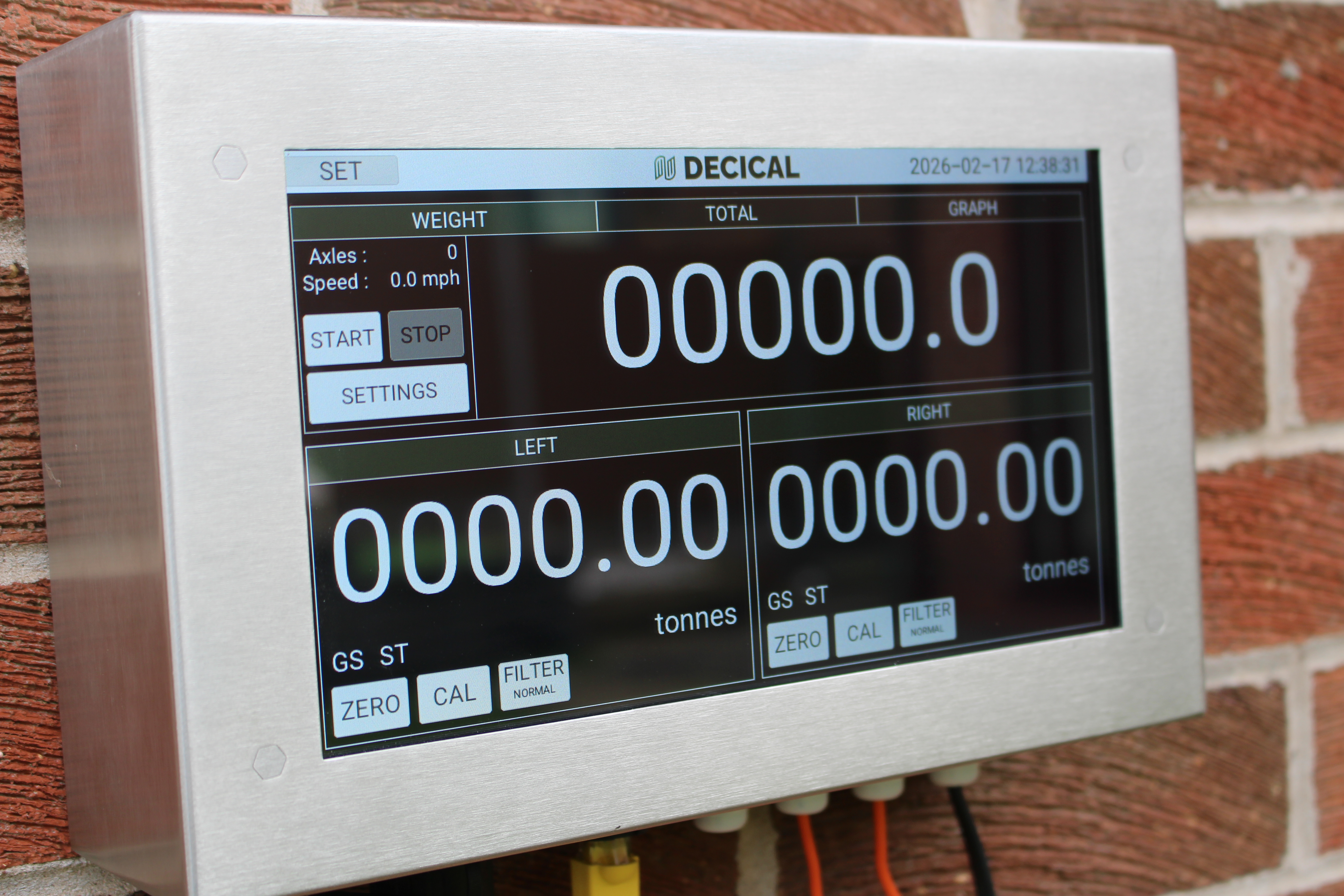

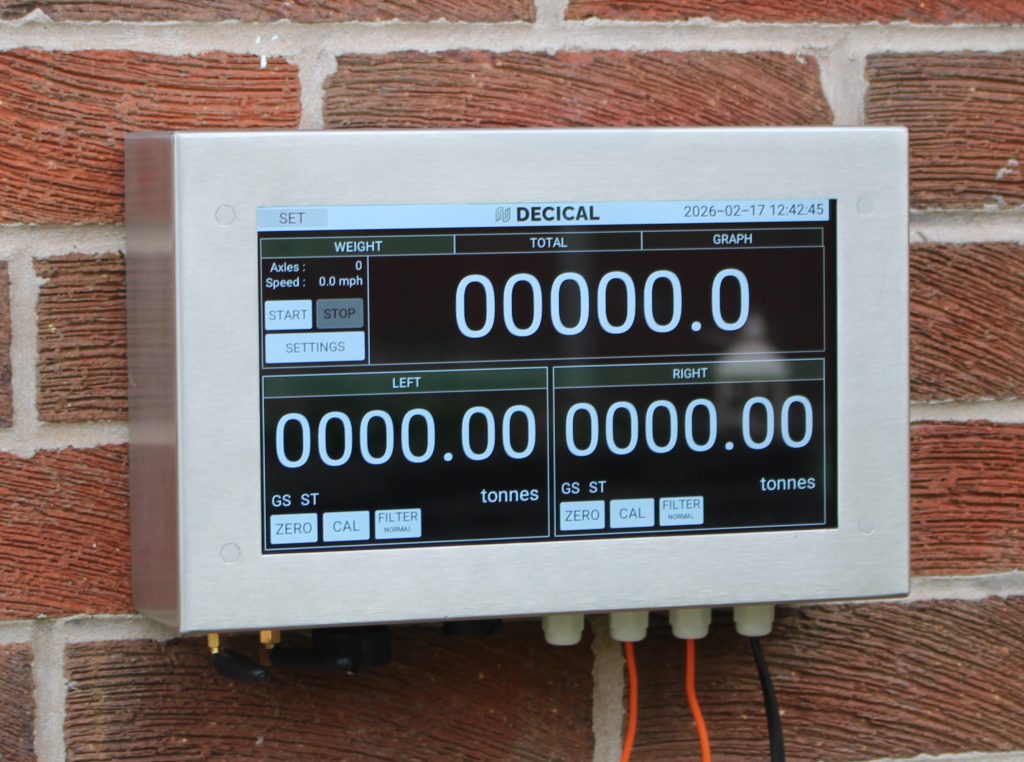

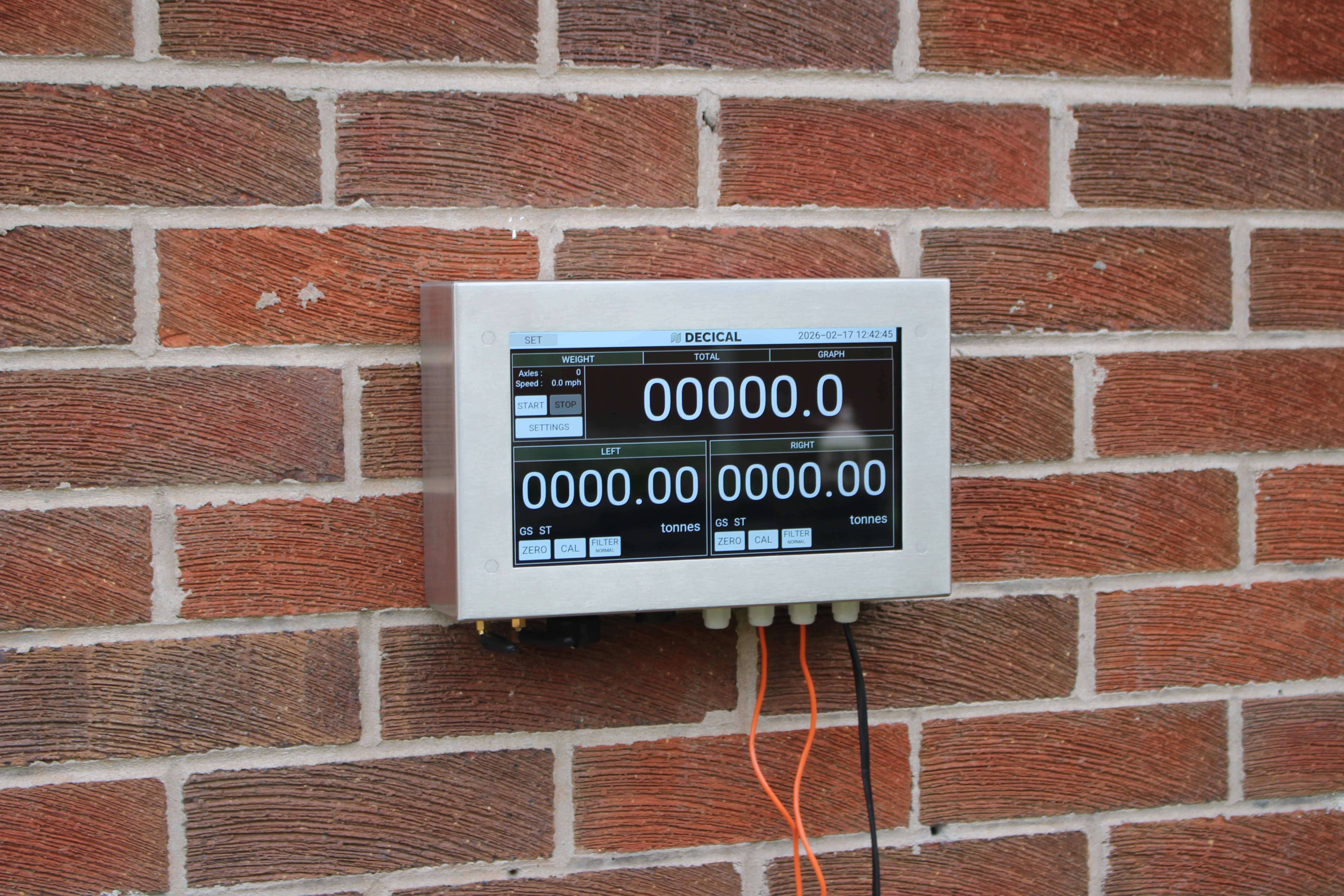

NEXUS can also be the solution in bespoke, custom PC built software created to integrate and embed in your clients process systems. The images show different themes and program structures, for example a dynamic vehicle application reading two pads or a easy to read large digit character app.

Contact the Decical Weighing Electronics sales office with your requirements and specifications. Our indicators are designed and manufactured in Staffordshire and Shropshire in the United Kingdom.

ARCH-E COMLINK : RADIO / USB-C / WIFI TRANSMITTER

The COMLINK is a 863-865Mhz high power, long range radio sentinel.

Fast, versatile, powerful and reliable.

Fully configurable and cross platform across all our products

The unit is housed in a easy, quick mount robust 115 x 90mm IP65 ABS enclosure that features an USB rechargeable lithium ION battery that offers longevity and power when its needed. Available with a high grade, sealed plug or fitted with a load-cell plug of your choice.

RADIO VARIANT

COMLINK is fully programmable to suit each unique environment, not only does it feature sleep functionality but selectable licence free powerbands and protocols (+ME is Manchester Encoding) :

256kbps,GFSK,FM,-ME,MI=0.5, “Very Fast Short Range FM”
128kbps,GFSK,FM,+ME,MI=1.0, “Fast Reliable Short Range FM”
32kbps,GFSK,FM,+ME,MI=0.5, “Average Reliable Mid Range FM”
16kbps,GFSK,FM,+ME,MI=0.5, “Slow Very Reliable Mid Range FM”
8kbps,GFSK,FM,+ME,MI=1, “Slow Reliable Long Range FM”
256kbps,OOK,AM,+ME, “Fast Short Range AM”
2kbps,OOK,AM,+ME, “Slow Long Range AM” (up to 1km open space)

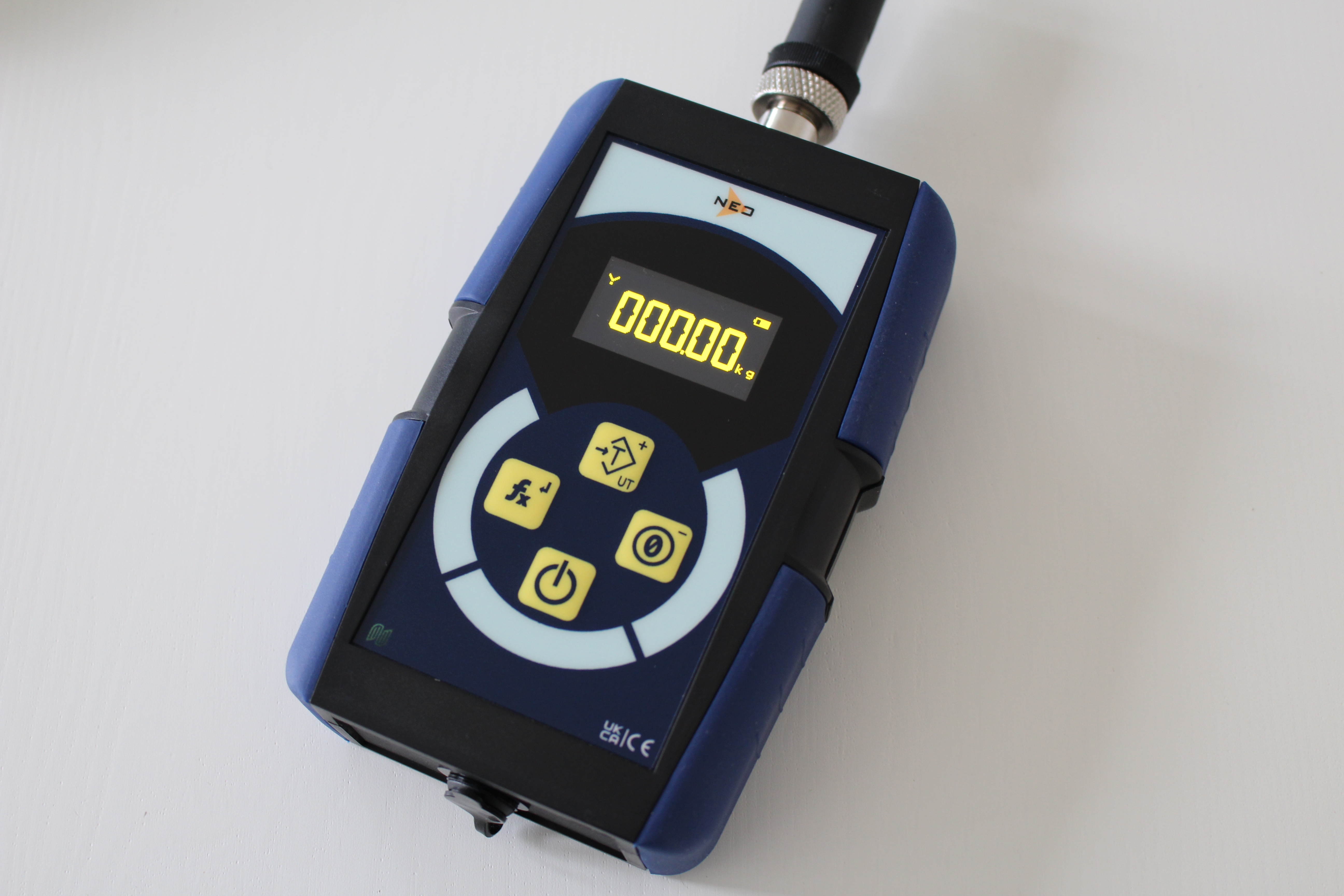

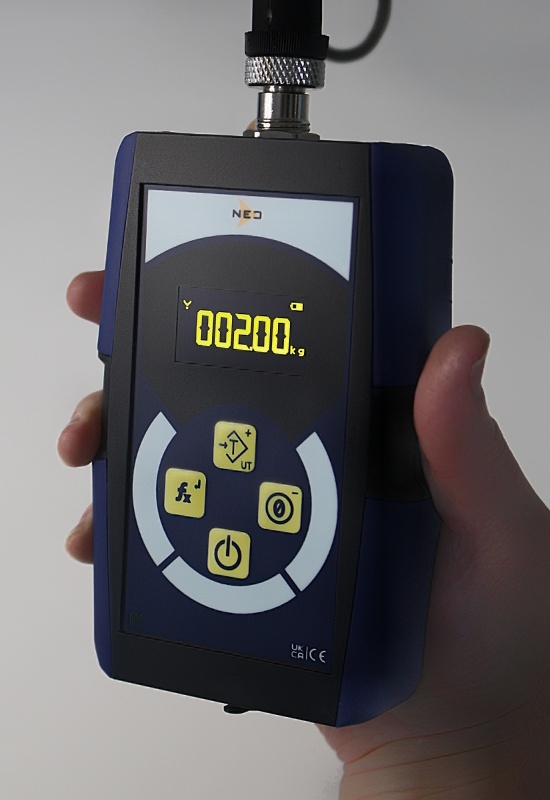

Packed with performance 24bit analog conversion, ultimate high speed communication and unlimited access points, the COMLINK is an perfect partner for the GENESIS, BEAT and NEO (two new handsets to be released shortly) including the AMOEBA and top of the range NEXUS indicators (two new weigh-indicators coming soon…)

Using the 868MHz band license free is allowed by the following countries
in addition to the UK:

All 28 EU states including EFTA members – Iceland, Liechtenstein, Norway and Switzerland and associated European states: Albania, Andorra, Bosnia and Herzegovina,
Serbia and Ukraine.
Outside of Europe: Kenya and South Africa, 915Mhz fitted for USA, Australia, Japan (Asia) markets.

USB-C VARIANT

The USB-C version is self powered from the USB-C port complete with industry standard drivers. Fully programmable via the terminal and available with or without the battery rechargeable option (HUB-PCB available separately for OEM applications).

WIFI VARIANT

ESP32 web-link WiFi is coming soon, watch this space!

For more information, details and prices please contact our sales office.

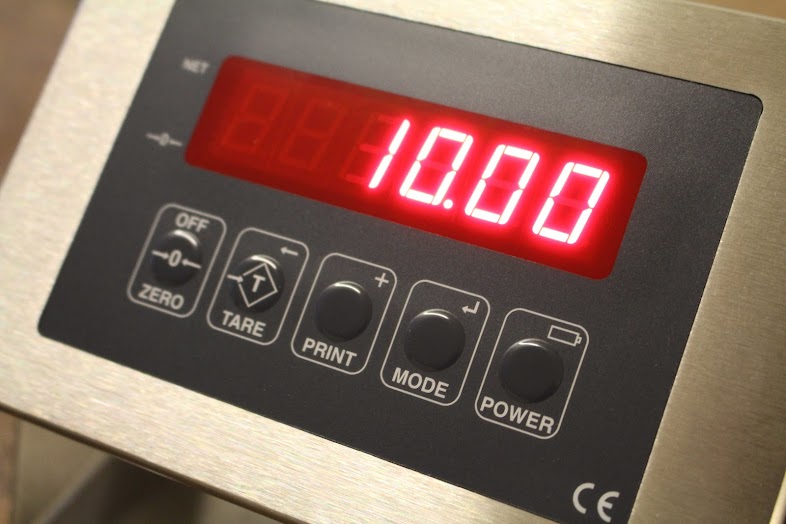

JUNIOR DIGITAL WEIGH TERMINAL

This classic, renowned indication unit has has stood the test of time, Reliable and versatile, the Junior has been in production for a generation.

The Junior is housed in an high grade UK sourced splash proof stainless steel enclosure and features 18mm high intensity LED displays, integral mains power supply and high performance 24bit sigma delta conversion. Also, the Junior is available with LCD displays for outdoor use and a versatile DC power stage. Optional additions include 4-20mA, two relay outputs and one remote input, serial RS232C output and time/date.

Over 10,000 units have been produced over the generation, a timeless classic. Prices start from £160.00, please call the sales office.

Display: 6 digits, 18mm high LCD or LED displays
Membrane: Polyester, tactile action.
Enclosure: Splash proof, 165mm x 110mm x 60mm High Grade UK Stainless Steel.
Operating Temperature: -10 to +40 degrees C
Load cell Capability: Up to 8 x 300R load cells

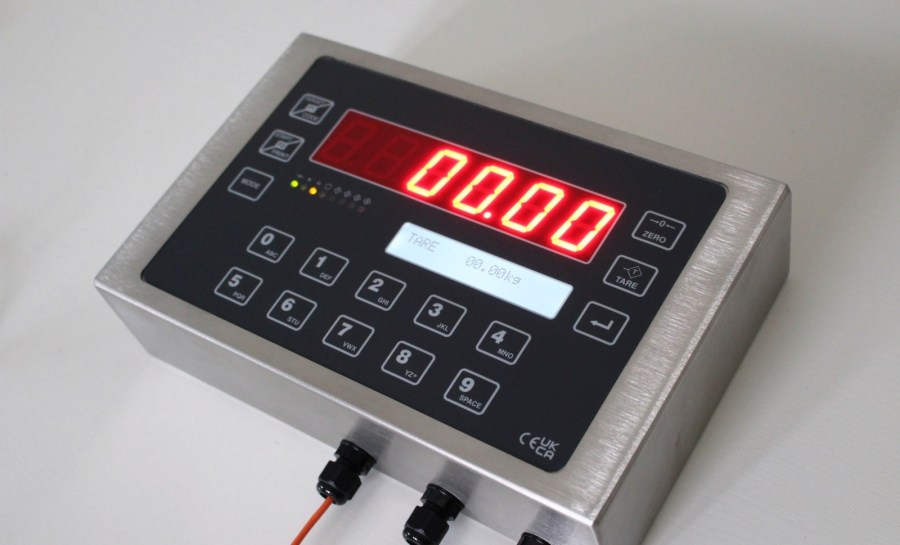

EXCELSIOR DIGITAL WEIGH TERMINAL

The legendary classic digital weight indicator that shares the reputation of the Junior for its versatility, performance, reliability and flexibility.

The Excelsior boasts six 1″ (25.4mm) high intensity LEDs and easy to read 20 character, 2 line Alphanumeric LCD housed in a high grade UK sourced stainless steel enclosure. Featuring integral main power supply (available as a DC version) , high performance 24 bit sigma delta conversion and a wealth of options. High power AC or DC relay drives, remote switch input, 4-20mA, serial RS232C, time/date and up to 4 weighing channels.

Prices start from £320.00, please call the sales office for more details.

Display: 6 digits, 25.4mm (1”) high intensity LED display and 2 x 20 Backlit Alphanumeric LCD display.
Membrane: Polyester, tactile action
Enclosure: Splash proof, 260mm x 160mm x 65mm High Grade UK Stainless Steel.
Operating Temperature: -10 to +40 degrees C
Load cell Capability: Up to 4 individual weigh channels (16 x 300R load cells)

History

Decical Electronics is a new UK manufacturing company that was born from the ashes of Electronic Weighing Services.

We aim to forge our own path with the launch of some exciting new products that are built in the UK

We offer a bespoke design service to help create and build a product unique to your design.

Manufactured in the UK, we support UK business and are proud to stand against the rising tide of imports and offer competitive, high performance products with unparalleled support.
